| Product Attribute | Attribute Value |
|---|---|
| Part Number | DLA40IM800PC |
| Manufacturer | IXYS / Littelfuse |
| Voltage - Forward (Vf) (Max) @ If | 1.3V @ 40A |
| Voltage - DC Reverse (Vr) (Max) | 800V |
| Supplier Device Package | TO-263 (D²Pak) |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Series | - |
| Packaging | Tape & Reel (TR) |

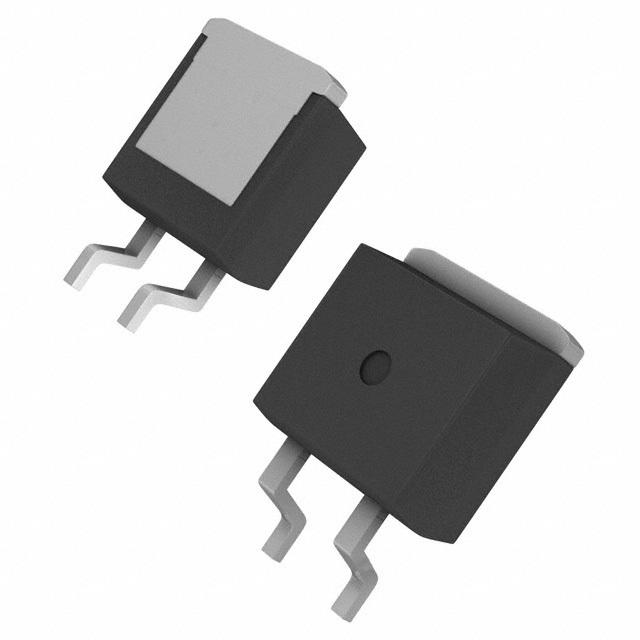

| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Standard |
| Detailed Description | Diode Standard 800V 40A Surface Mount TO-263 (D²Pak) |
| Current - Reverse Leakage @ Vr | 10µA @ 800V |
| Current - Average Rectified (Io) | 40A |
| Capacitance @ Vr, F | 10pF @ 400V, 1MHz |
